£26.02

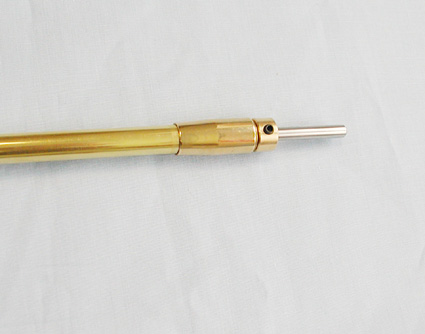

301-11 Propeller Shaft M2 lg 230mm
[2000]

Totally maintenance-free propeller shafts developed for finer-scale models. The bearing housings on the motor side have self-lubricating bronze bearings and O-ring for water tightness. The Shafts can also be shortened.
Sleeves: Brass. Shafts: Stainless Steel (SS 304). Rear bearing: Delrin. Maximum RPM (revolutions/min.): 10,000.
The A frame bracket is in mouded high strenth nylon with brass bearings the 2 legs of the A frame are the commom 60% angle and the 3rd leg can be removed to make an A frame, or the 2 legs can be removed to make a P bracket, a universal mounting for all exposed shafts.

A = Tube Length, B= O.A. Length, C= Diameter, D= Cupling End, E= Prop end

Code

A

B

C

D

E

301-11

140

230

6

2

M2

301-12

148

270

6

3

M3

301-13

153

330

8

4

M4

All dimensions in MM
